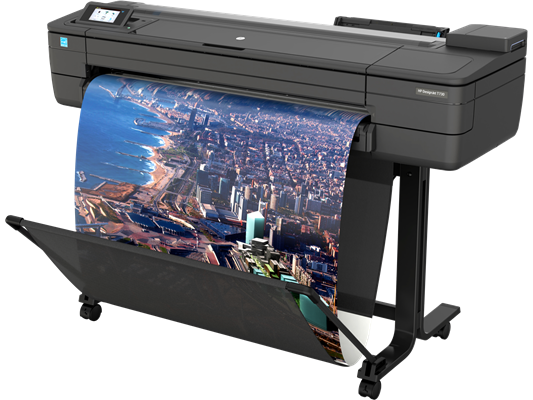

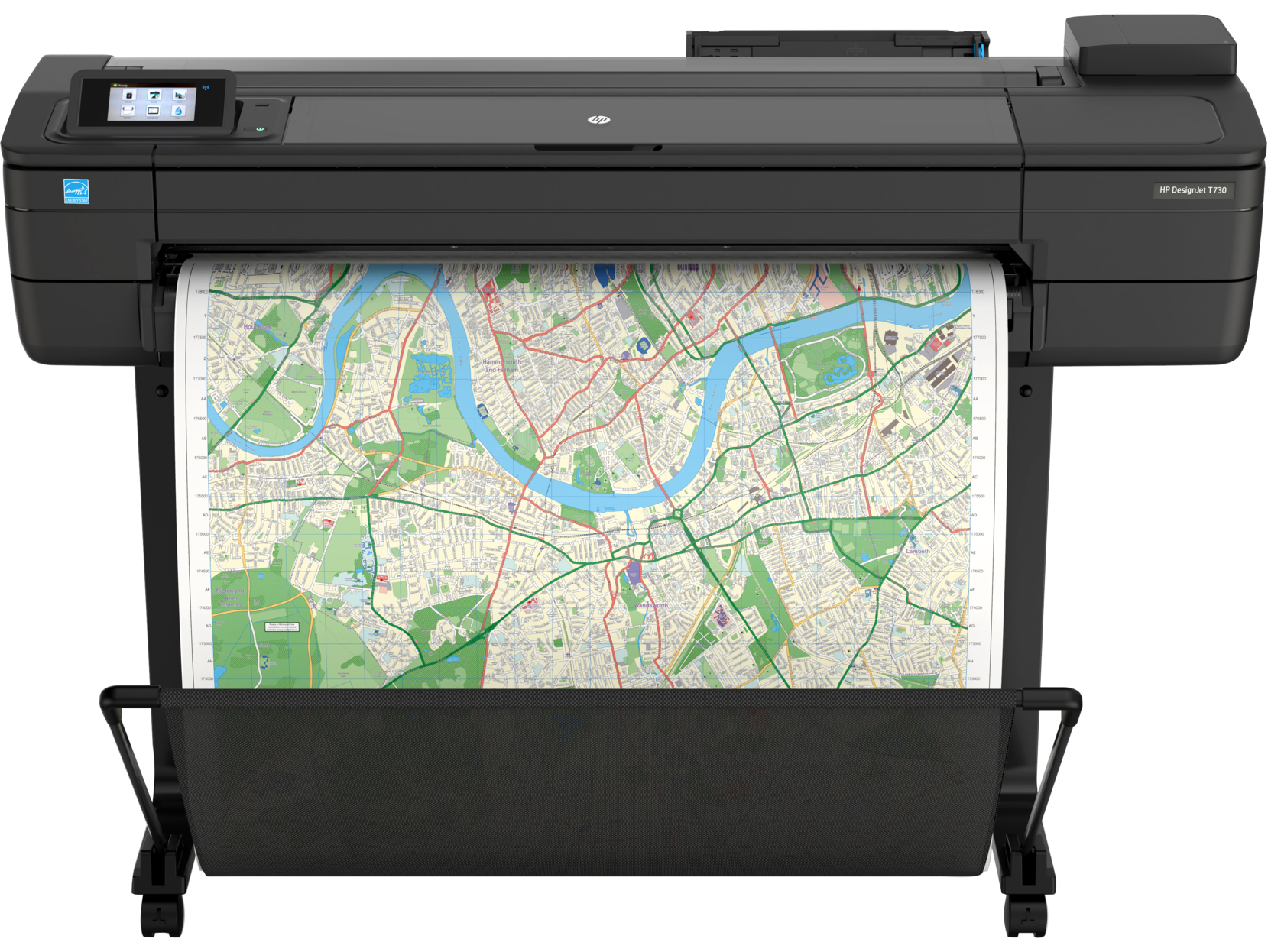

HP DesignJet T730 Printer

Ideal for use in the studio or at the job site, this robust, compact printer delivers A1/D-size prints in 25 seconds and helps keep you productive with large HP ink cartridges that can reduce interventions.

Print at half scale—and cut waste by 50%—with an automatic sheet feeder/tray. Easy wireless connectivity means you can place it nearly anywhere. Easily print project sets and PDF documents. Features a redesigned stand that reduces C02e.





Product Name    HP DesignJet T730 Printer

AIO Functions    Print

Accessories    HP DesignJet 36-in Spindle B3Q37A, HP USB 3.0 to Gigabit LAN Adapter N7P47AA, HP DesignJet Rugged Case N9M07A

Acoustic Power Emissions (active, printing)    6.5 B(A) (operating), <3.4 B(A) (idle)

Acoustic Pressure Emissions    48 dB(A) (operating), <16 dB(A) (idle)

Average Weekly Print Volume    100 D/A1 prints per week

Connectivity, Opt    HP USB 3.0 to Gigabit LAN Adapter

Connectivity, Std    Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

Copyright Notice    © Copyright 2022 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Dynamic security    Dynamic security enabled printer

Eco Qualified Label 01    ENERGY STAR® certified; EPEAT Silver registered

Ecolabels    ENERGY STAR® qualified

Electromagnetic Emission Standard   Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Energy Star Certified    Yes
Environmental Certifications    ENERGY STAR, EPEAT Silver, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine.

HP ePrint Capability    Yes

Hard Disk    None

Image Legal Disclaimer    Product image may differ from the actual product

Ink Drop    6 pl (C, M, Y); 12.6 pl (mK)

Ink Types    Dye-based (C, M, Y); pigment-based (mK)

Line Accuracy    ±0.1%[2]

Line Accuracy Note    ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Heavyweight media in Best or Normal mode with Original HP inks

Manufacturer Warranty    One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.

Maximum Memory    1 GB

Maximum Optical Density (black)    8 L* min/2.10 D[3]

Maximum Optical Density Footnote (black)    With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Media Handling, Document Finishing    Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

Media Size Maximum, Imperial (facet)    36

Media Size Maximum, Metric (facet)    910

Media Sizes Custom (imperial)    Input tray: 8.3 x 11 to 13 x 19 in; Manual feed: 13 x 19 to 36 x 74.7 in

Media Sizes Custom (metric)    Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm

Media Sizes Standard (imperial Rolls)    11 to 36 in

Media Thickness (by paper path)    Up to 11.8 mil

Media Thickness (metric)    Up to 0.3 mm

Media Types    Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

Media Weight Recommended (metric)    60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Media Width Maximum (imperial)    36 in

Media Width Maximum (metric)    914 mm

Media sizes standard (metric rolls)    279 to 914 mm

Minimum Line Width (imperial)    0.0028 in (ISO/IEC 13660:2001(E))
Minimum Line Width (metric)    0.07 mm (ISO/IEC 13660:2001(E))

Minimum Line Width Footnote (imperial)    Measured on HP Matte Film

Minimum Line Width Footnote (metric)    Measured on HP Matte Film

Mobile Printing Capability    Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS

Model Size (imperial)    36 in

Model Size (metric)    914 mm

Monthly Printed Pages (facet)    Often

Network Ready    Standard

Non-Printable Area (imperial cut-sheet)    0.2 x 0.2 x 0.2 x 0.2 in

Non-Printable Area (metric cut-sheet)    5 x 5 x 5 x 5 mm

Non-operating Humidity Range    0 to 95% RH
Non-printable Area Roll Media (imperial)    0.2 x 0.2 x 0.2 x 0.2 in

Non-printable Area Roll Media (metric)    5 x 5 x 5 x 5 mm

Operating Humidity Range    20 to 80% RH

Operating Temperature Range (celsius)    5 to 40ºC

Operating Temperature Range (Fahrenheit)    41 to 104ºF

Package Dimensions (imperial)    62.5 x 22.6 x 25.4 in

Package Dimensions (metric)    1578 x 575 x 646 mm

Power Consumption Description    35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)

Power Supply Required    Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max

Primary Applications (facet)    Office documents and presentations; Engineering and construction documents

Print Cartridge Volume Delivered (metric)    HP 728 Ink Cartridge: matte black (300 ml); cyan, magenta, yellow (130 ml); matte black, cyan, magenta, yellow (69 ml); cyan, magenta, yellow (40 ml)

Print Cartridge, Color(s)    Cyan, magenta, yellow, matte black

Print Cartridges, Number    4 (C, M, Y, mK)

Print Head Nozzles    1376

Print Heads    1 (C, M, Y, mK)

Print Languages, Standard    HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF

Print Resolution Color (best)    Up to 2400 x 1200 optimized dpi

Print Speed (imperial)    25 sec/page on D, 82 D prints per hour

Print Speed (metric)    25 sec/page on A1, 82 A1 prints per hour

Print Speed Line Drawing (economode, A1 Plain Paper)    82 A1 prints per hour

Print Speed Line Drawing (economode, D Plain Paper)    82 D prints per hour

Print Technology    HP Thermal Inkjet

Print Time Line Drawing (economode, A1 Plain Paper)    25 sec/page

Print Time Line Drawing (economode, D Plain Paper)    25 sec/page

Printer Drivers Included    HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows

Printing Path    Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive

Product Logos    AirPrint; ENERGY STAR; EPEAT Silver; IPv6 Ready Phase 2 (Gold); Mac; Wi-Fi CERTIFIED; Windows 10 Compatible

Product Type (facet)    Office Printers for CAD and GIS

Roll External Diameter    100 mm

Roll External Diameter (imperial)    3.9 in

Roll Maximum Input    1

Roll Maximum Weight (imperial)    13.6 lb

Roll Maximum Weight (metric)    6.2 kg

Safety Approvals and Requirements    USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia (EAC); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS)

Segment (facet)    Business

Software Included    HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows

Standard Media Sizes Supported (imperial)    Input tray: A, B; Manual feed: C, D, E
Standard Media Sizes Supported (metric)    Input tray: A4, A3; Manual feed: A2, A1, A0

Standard Memory    1 GB

Storage Temperature Range (celsius)    -25 to 55ºC

Storage Temperature Range (Fahrenheit)    -13 to 131ºF

Sub Brand (facet)    DesignJet

Subcategory (facet)    Large format

Supported Applications, Primary    Line drawings; Renderings; Presentations

Sustainable Impact Specifications    Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Tech Spec Footnote 01    [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.

Tech Spec Footnote 02    [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.

Tech Spec Footnote 03    [3] With HP Premium Instant Dry Photo Gloss media with Original HP inks.

Technology    Ink

Theoretical Minimum Line Width (imperial)    0.0008 in (HP-GL/2 addressable)

Theoretical Minimum Line Width (metric)    0.02 mm (HP-GL/2 addressable)

What Is In The Box    HP DesignJet T730 Printer, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord



Footnotes:

Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections) or have a direct wireless connection. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with the service provider for coverage and availability in your area.
